HDPE Core Bit (Composite Core Bit)
Drilling in work materials such as HDPE Pipes, wood and plywood.
CHARACTERISTICS
- Very good for drilling into HDPE Pipes.
- Drilling in composite materials and wooden materials, such as resin-based artificial marble and FRP, is possible with a handy drill.
- The use of marking blade provides excellent cutting performance for fiber materials.
APPLICATIONS
- Interior materials such as plywood, plaster boards, etc.
- Resin materials such as FRP or polyvinyl chloride.
- Resin artificial marble.
- Wood such as two-by-fours.

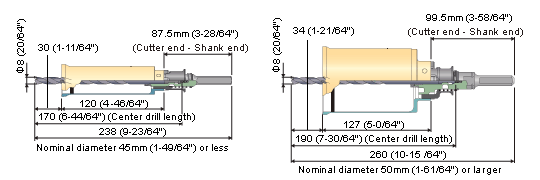

SPECIFICATIONS
 |
Cutter size: | o25/32" to 8-1/4" (o20mm to 210mm) | |
|
Max. drilling depth: | 4"(100mm) |
o25/32" to 4-3/4"(o20mm to 120mm) |
| 5"(130mm) | o5-1/8" to 8-1/4"(o130mm to 210mm) | ||
|
Shank size: | S shanks: | 3/8" (10mm) (Cutters of o25/32" to 1-3/4" (o20mm to 45mm)) |
| L shanks: | 33/64" (13mm) (Cutters of o2" to 8-1/4" (o50mm to 210mm)) |
||
| 3/8" (10mm) (Cutters of o2" to 3-1/8" (o50mm to 80mm)) ..... Optional |
|||
|
Applicable electric drill: Portable electric drills (in the rotary-only mode) | ||
Precautions for use
- Use the "Wooding Core Bit" to drill a hole in work materials that contain nails.
