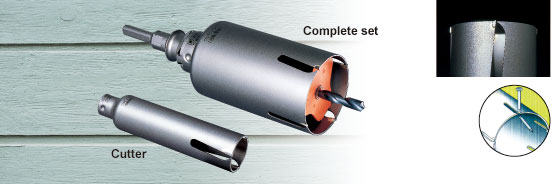

Wooding Core Bit
For various types of wall materials such as metallic siding boards, ceramic siding boards, wood, etc.
Our original design of the cutting teeth permits safe and fast drilling through nail embedded wood.
CHARACTERISTICS
- Specially designed for safe and fast drilling through nail embedded wood.
APPLICATIONS
- Metallic siding boards, ceramic siding boards, woods, plaster boards, veneer, laminated wood, slate, floor panel, polyvinyl chloride, artificial marble, FRP.
SPECIFICATIONS
 |

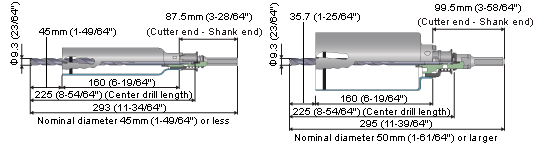

Cutter size: | o1" to 8-1/4" (o25mm to 210mm) | |
|
Max. drilling depth: | Standard size: 5-1/8" (130mm) | |
|
Shank size: | S shanks: | 3/8" (10mm) (o7/8" to 1-3/4" (o22mm to 45mm)) |
| L shanks: | 33/64" (13mm) (o2" to 8-21/32" (o50mm to 220mm)) | ||
| 3/8" (10mm) (o2" to 3-1/8" (o50mm to 80mm)) ..... Optional |
|||
|
Applicable electric drill: Portable electric drills (in the rotary-only mode) | ||
Precautions for use
- Use a carbide-tipped center drill (PCHWCD225) when making a hole in ceramic siding boards.
- Use the Hyperdia Core Bit for drilling in hard ceramic siding boards.
- This core bits can make a hole in the metallic part of metallic siding boards of up to approx. 1/64" (0.5mm) thickness. However, this tool is not suitable for drilling in a flat surface (without small bumps and dips) of the metallic part.
