Mistdia Drill Bit

For small-diameter drilling, the diamond drill bit with low vibration and low noise has made its debut.

Mistdia Drill Bit

CHARACTERISTICS
  • Supplied water cools the diamond-tipped teeth, removes dust, and increases drilling efficiency.
  • Thanks to the automatic valve mechanism, water is fed to the cutting teeth only while drilling. (when using the Auto-lock shank)

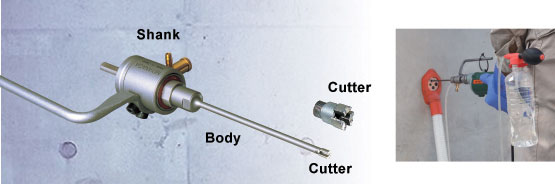

  • Since the cutter and body are connected with a thread, simply replacing the cutter will suffice when the cutter teeth are worn.
  • Cracks do not get clogged with dust. The backside surface breakaway is minimized after drilling.
  • Drilling work with low noise and the least amount of vibration and impact transferred to the worker.
APPLICATIONS

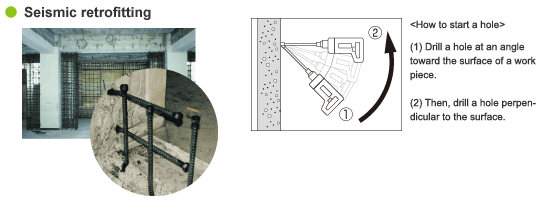

  • Earthquake-resistant reinforcement work, water-proofing work, building exterior repair work, and drilling pilot holes for installation of anchor bolts.
  • Concrete, mortar, stone, and ceramic tiles drilling work.
SPECIFICATIONS
Mistdia Drill Bit Bit size: o3/16" to 15/16" (o5.0mm to 24.0mm)
Mistdia Drill Bit Overall length: See size table.
Mistdia Drill Bit Shank size:
Mistdia Drill Bit Recommended rotation speed: 1,500 to 15,000rpm
Double insulated electric drills (in the rotary-only mode)

* Click here for the optimum rotation rate, recommended electric drills, and dressing.

  • Size Table
