Recommended rotation speed for diamond bits

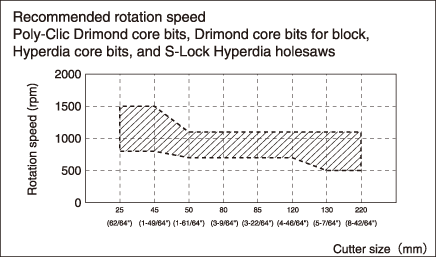

Poly-clic Drimond Core Bit, Drimond Core Bit for Block, Hyperdia Core Bit
S-Lock Hyperdia Holesaw
| Cutter size D | Rotation speed (rpm) | Power consumption (W) | |
| inch | mm | ||
| 1" to 1-3/4" | 25mm to 45mm | 1500 to 800 | 450W or larger |
| 2" to 3-1/8" | 50mm to 80mm | 1100 to 700 | 550W or larger |
| 3-3/8" to 4-3/4" | 85mm to 120mm | 650W or larger | |
| 5-1/8" to 8-21/32" | 130mm to 220mm | 1100 to 500 | 750W or larger |

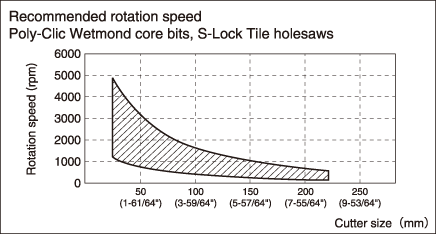

Poly-clic Wetmond Core Bit
S-Lock Tile Holesaw
| Cutter size D | Rotation speed (rpm) | Power consumption (W) | |
| inch | mm | ||
| 1" to 1-1/2" | 25mm to 38mm | 4900 to 800 | 500W or larger |
| 1-3/4" to 2-9/16" | 45mm to 65mm | 2700 to 500 | |
| 2-3/4" to 4-3/4" | 70mm to 120mm | 1800 to 300 | 700W or larger |
| 5-1/8" to 8-21/32" | 130mm to 220mm | 1000 to 200 | |

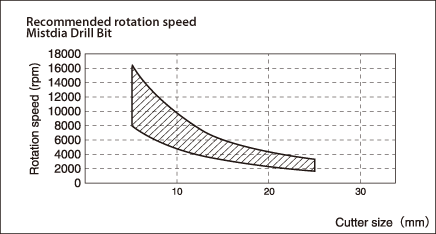

Mistdia Drill Bit
| Bit size D | Rotation speed (rpm) | Power consumption (W) | |
| inch | mm | ||
| 3/16 to 13/32" | 5 to 10.5mm | 15000 to 3000 | 250W or larger |
| 27/64" to 15/16" | 11mm to 24mm | 7000 to 1500 | 500W or larger |
IT Drills / IT Bind Method (IT diamond straight body)
| Bit size D | Rotation speed (rpm) | Power consumption (W) | |
| inch | mm | ||
| 3/16 to 13/32" | 5 to 10.5mm | 5000 to 2000 | 250W or larger |
| 27/64" to 15/16" | 11mm to 24mm | 500W or larger | |
Applicable electric drills (Guideline)
* Tools of some bit/cutter size may not fit the following electric drills.
| PC-Drimond Core Bit PC-Drimond Core Bit for Block PC-Hyperdia Core Bit SL-Hyperdia Holesaw |
PC-Drimond Core Bit (For hume pipe) |
Mistdia Drill Bit | |
| Hitachi | DC-120 VTP-25 V-19 DV-20VB DV-21V |
DC-120 |
DW12SA*1 DV20VB |
| Makita | 63004 8419B 6300T (small diameter) 8406 (small diameter) 8406C (small diameter) |
63004 | DD2011*1 6408 6310 8406C |
| Bosch | GBH-2/24DSE GBH-2/24DSR GBH-2SE |
GBH-4DSC | GBM13-2RE |
| HILTI | TE-18M TE-25 |
TE-18M TE-25 |
TE-18M |
| Kudo-koki | |||
| AX BRAIN |
| IT Drills IT Diamond Straight Body |
PC-Wetmond Core Bit SL-Tile Holesaw |
PC-Wetmond Core Bit (o 4-3/4" (120mm) or larger) |
|
| Hitachi | DV20VB D6SH |
DC-120 |
DC-120 |
| Makita | DP2001A*2 |
6300T 8406 8406C |
8406 8406C |
| Bosch | GBM6*2 GSB20-2RE/N |
||
| HILTI | TE-18M TE-25 |
TE-18M TE-25 |
|
| Kudo-koki | KD-5000 | ||
| AX BRAIN | AX-5130 |
| Red: With safety clutch | |
| Blue: Without double insulation | |
| *1: | Because it has no side handle, but has a hose, the coolant does not turn. Usable. |
| *2: | Because it has no side handle, it must be fixed separately before use. |
Filing and dressing
- If the electric drill produces a low output, its rotation will stop, thus disabling drilling.
- Never stop drilling halfway through completion. (The cutting teeth may get broken.)
- If the cutter becomes dull during drilling for some reason, make filing by drilling several holes in a block, GC stone, etc.
- For dressing (filing), it is recommended to use our dressing plates. (Click here)
