Diamond/carbide core bits or hole saws (automatic-lock type shank) for electric drills | Poly-clic Series | MIYANAGA Co., LTD.

  •
  • Highlights
  • Size table
  •

Hybrid Core Bit

Drilling in composite materials such as a stainless steel plate combined with a panel for concrete form.

Hybrid Core Bit

CHARACTERISTICS
  • Our original design of the cutting teeth permits drilling in various types of composite materials.
APPLICATIONS
  • Stack-cutting for composite materials such as boards of a kitchen counter or system bath.
  • Various combined materials for walls such as metallic siding boards and wooden or resin materials.

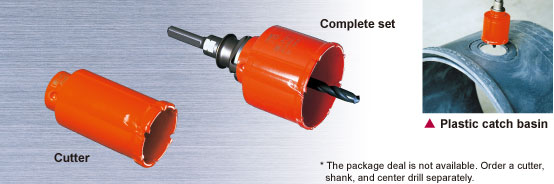

  • Plastic catch basin or polyvinyl pipes.
SPECIFICATIONS
Hybrid Core Bit Cutter size: o25/32" to 6-5/16" (o20mm to 160mm)

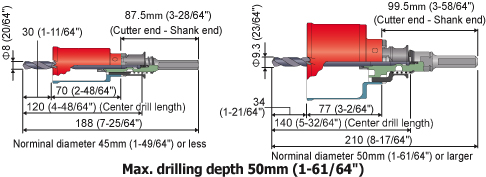

Hybrid Core Bit Max. drilling depth: Standard size: 2" (50mm)
Hybrid Core Bit Shank size: S shanks: 3/8" (10mm) (o25/32" to 1-3/4" (o20mm to 45mm))
  L shanks: 33/64" (13mm) (o2" to 6-5/16" (o50mm to 160mm))
  3/8" (10mm) (o2" to 3-1/8" (o50mm to 80mm))
..... Optional
Hybrid Core Bit Applicable electric drill: Portable electric drills (in the rotary-only mode)

Hybrid Core Bit

  • Size Table
