Diamond/carbide core bits or hole saws (automatic-lock type shank) for electric drills | Poly-clic Series | MIYANAGA Co., LTD.

  •
  • Highlights
  • Size table
  •

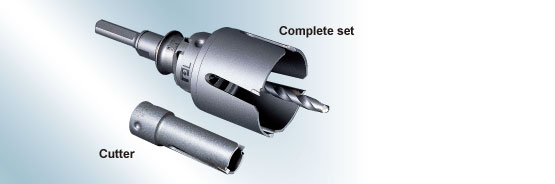

FRP Core Bit

Realizes highly efficient drilling in new work materials that are difficult to machine.

FRP Core Bit

CHARACTERISTICS
  • The geometry of the cutting teeth has been designed for obtaining sharpness, which allows fine cutting of reinforced material such as glass fibers of Fiber Reinforced Plastics, new kinds of building materials and provides a fine drilled surface. The surfaces of through holes are also fine with fewer burrs.
  • The deeper chip pocket enhances heat dissipation effect and provides smooth removal of dust, which allows drilling in thick plates.
APPLICATIONS
  • Large diameter into FRP, acrylic materials, Polyvinyl Chloride materials, plywood or various new kinds of building materials.

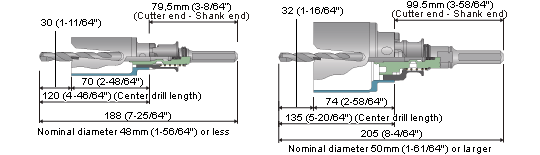

SPECIFICATIONS
FRP Core Bit Cutter size: o25/32" to 5" (o20mm to 127mm)
FRP Core Bit Max. drilling depth: 1-3/4" (45mm)
FRP Core Bit Shank size: S shanks: 3/8" (10mm) (Cutters of o21/32" to 1-7/8" (o17mm to 48mm))
  L shanks: 33/64" (13mm) (Cutters of o2" to 5" (o50mm to 127mm))
    3/8" (10mm) (Cutters of o2" to 3-1/8" (o50mm to 80mm))
..... Optional
FRP Core Bit Applicable electric drill: Portable electric drills (in the rotary-only mode)

  • Size Table
