Size table
| Cutter | Max.drilling depth 2"(50mm) |
Max.drilling depth |
|
| Size | Part. No. | Part. No. | Part. No. |
| 5/32" | DMU532C | DMA04050B | n/a |
| 3/16" | DMU316C | DMA05050B | DMA050100B |
| 1/4" | DMU14C | DMA06050B | DMA060100B |
| 5/16" | DMU516C | DMAU51650B | DMAU516100B |
| 3/8" | DMU38C | DMA10050B | DMA100100B |
| 1/2" | DMU12C | DMA12550B | DMAU12100B |
| 9/16" | DMU916C | DMA14550B | DMA145100B |
| 5/8" | DMU58C | n/a | DMAU58100B |
| 3/4" | DMU34C | DMAU200130B | |
| 7/8" | DMU78C | DMA230200B | |
| 15/16" | DMU1516C | DMAU1516200B | |
| 1 | DMBCU1 | 1 Piece Design No Body needed. |
|
| 1 1/4 | DMBCU114 | ||
| 1 3/8 | DMBCU138 | ||
| 2 | DMBCU2 | ||
Shank assembly
| Shank | Description | For use with |
| DMSK1A | Quick Change Mistdia Shank No.1 | For Cutters DMU12C and under |
| DMSK2A | Quick Change Mistdia Shank No.2 | For Cutters DMU916C and over |

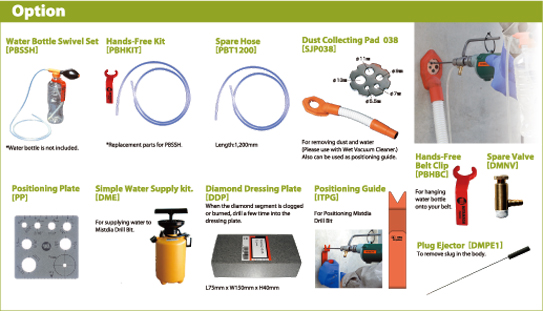

Option
