Mistdia Drill Bits(Quick-Change Type)
For small-diameter drilling, the diamond drill bit with low vibration and low noise has made its debut.
CHARACTERISTICS
- Supplied water cools the diamond-tipped teeth, removes dust, and increases drilling efficiency.
- By the automatic valve mechanism, water is fed to the cutting teeth only while drilling.

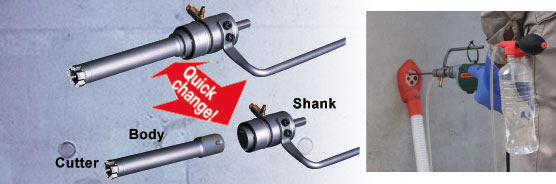

- Since the cutter and body are connected with a thread, simply replacing the cutter will suffice when the cutter teeth are worn.
- Cracks do not get clogged with dust. The backside surface breakaway is minimized after drilling.
- Drilling work with low noise and the least amount of vibration and impact transferred to the worker.
APPLICATIONS
- Earthquake-resistant reinforcement work, water-proofing work, building exterior repair work, and drilling pilot holes for installation of anchor bolts.
- Concrete, mortar, stone, and ceramic tiles drilling work.
SPECIFICATIONS
 |
Bit size: | o5/32" to 2 " |
|
Overall length: | See size table. |
|
Shank size: | |
|
Recommended rotation speed: | 1,500 to 15,000rpm Double insulated electric drills (in the rotary-only mode) |
