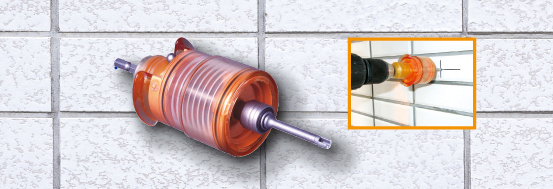

Diamond drill for tile AQUA SHOT
Smoothly drilling into porcelain tile,ceramic tile, granite, and marble with cordless impact drivers.
CHARACTERISTICS
- Easily drills into difficult-to-cut materials such as porcelain tile.
- Excellent durability. Automatic water supply to the cutting edge (with a built-in water tank)
*Enabled when the revolution per minutes (RPM) of the electric drill is 1000 to 3000 rpm.
No water is supplied when the RPM is other than above range. - Usable with impact drivers, which allow cordless and easy operation.
- Individually replaceable cutter delivers cost saving.
APPLICATIONS
- Porcelain tile and Ceramic tile.
- Granite and Marble.
SPECIFICATIONS
 |
Cutter diameter: | ø5/32" to 1/2" (ø4.0mm to 13.0mm) |
|
Max.drilling depth: | 1-3/8" (35mm) |
|
Shank size: | 1/4" hexagonal shank (6.35mm) (DIN3126,ISO1173 style E6.3) |
|
Optimum rotation: | 1000-3000 r.p.m (double insulated,in the rotary-only mode) |
Precautions for use
- Optimum rotation : 1000-3000 r.p.m
- Water does not feed unless the rotation is optimum.
How to replace the water tank. (ASWT)
How to replace the shank and the water tank.
- Click here for the PDF Download.
