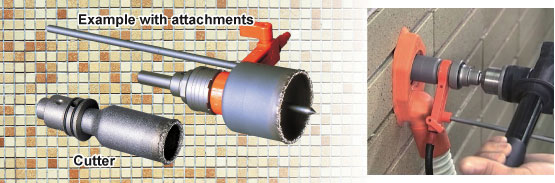

Tile Holesaw
Diamond-tipped cutter permits drilling in ceramic tiles and rigid tiles.
CHARACTERISTICS
- The carbide center pin ensures accurate hole starting without bit walking or shifting.
- Easy to operate with the automatic locking and manual release mechanism.
(S-Lock system)
APPLICATIONS
- Ceramic tiles, various types of tiles (Always use this tool for wet drilling.)
SPECIFICATIONS
 |
Cutter size: | o7/8" to 2-9/16" (o22mm to 65mm) | |
|
Max. drilling depth: | 1-1/2" (38mm) | |
|
Shank size: | Straight shank 3/8" (10mm), SDS shank, 1/4" Hex Shank (For cutter size of 1-3/8" (35mm) or less) |
|
|
Applicable electric drill: | Portable double insulated electric drills (in the rotary-only mode) or use GFCI. | |
Size table
| The actual sizes are in metric, imperial sizes are approximate. |
| Cutter size D | Cutters | |
| inch | mm | Part No. |
| 7/8" | 22mm | SLT022 |
| 1" | 25mm | SLT025 |
| 1-1/8" | 29mm | SLT029 |
| 1-1/4" | 32mm | SLT032 |
| 1-3/8" | 35mm | SLT035 |
| 1-1/2" | 38mm | SLT038 |
| 1-3/4" | 45mm | SLT045 |
| 2" | 50mm | SLT050 |
| 2-9/16" | 65mm | SLT065 |
* Click here for information about the shanks and center drills.
Shanks (without center drill)
| Item | Part No. | Specifications |
| Straight shank for Tile Holesaw | SLSKTU | Straight shank 3/8" (10mm) |
| * | The plug ejector is included. |
Center pin
| Item | Part No. | Application |
| Center pin | SLCP | Tile Holesaw |
Plug ejector
| Item | Part No. | Application |
| Plug ejector | SLPE | Removal of dust |
Cutter adaptors
| Item | Part No. | Cutter sizes |
| Cutter adaptor 30 | SLADP30 | 1-3/16" (30mm) or less |
| Cutter adaptor 38 | SLADP38 | 1-7/32" to 2-9/16" (31mm to 65mm) |
| Cutter adaptor 130 | SLADP130 | 2-19/32" to 5-1/8" (66mm to 130mm) |
Water bottle swivel set
| Item | Part No. |
| Water bottle swivel set | PBSS |
