Holesaw 578
Excellent cutting performance for work materials such as sheet metal and stainless sheet metal.
CHARACTERISTICS
- The carbide-tipped teeth permit drilling in work materials such as stainless steel.
- The cutting depth can be set in consideration of safety.
- Easy to operate with the automatic locking and manual release mechanism.

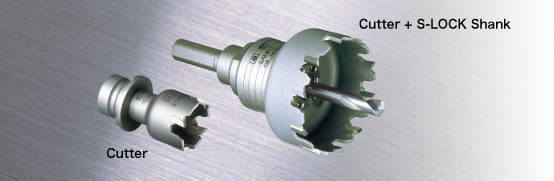

(S-Lock system)
APPLICATIONS
- Steel, stainless steel of up to 5/32" (4mm) thickness or 9 gauge sheet.
- FRP, resin plates, etc.
SPECIFICATIONS
 |

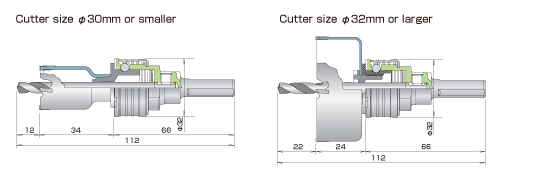

Cutter size: | o35/64" to 2-9/16" (o22mm to 65mm) |
|
Max. drilling depth: | 5/32"(4mm) or 9 gauge sheet. |
|
Shank size: | Straight shank 3/8" (10mm), SDS shank, 1/4" Hex Shank (For cutter size of 1-3/8" (35mm) or less) |
|
Applicable electric drill: | Portable electric drills (in the rotary-only mode) |
Size table
| The actual sizes are in metric, imperial sizes are approximate. |
| Cutter size D | Cutters | |
| inch | mm | Part No. |
| 7/8" | 22mm | SL578022 |
| 1" | 25mm | SL578025 |
| 1-1/8" | 29mm | SL578029 |
| 1-1/4" | 32mm | SL578032 |
| 1-3/8" | 35mm | SL578035 |
| 1-1/2" | 38mm | SL578038 |
| 1-3/4" | 45mm | SL578045 |
| 2" | 50mm | SL578050 |
| 2-1/16" | 53mm | SL578053 |
| 2-9/16" | 65mm | SL578065 |
* Click here for information about the shanks and center drills.
* Click here for Holesaw Kits.
Shanks for Holesaw 578 (with high speed steel center drill)
| Item | Part No. | Specifications |
| Straight shank | SLSK578U | Straight shank 3/8" (10mm) |
| Shank for cordless driver drill | SLSKD578U | 1/4” Hex Shank (For cutter size of 1-3/8"(35mm) or less) |
| * | The shank for cordless drill can be used with cutters of up to 1-3/8" (35mm) in diameter. |
Center drills
| Item | Part No. | Specifications |
| HSS center drill | SLCD | |
| HSS center drill 80 | SLCD80 | Holesaw 578 |
| Carbide center drill | SLCDT |
Plug ejector
| Item | Part No. | Application |
| Plug ejector | SLPE | Removal of dust |
Cutter adaptors
| Item | Part No. | Cutter sizes |
| Cutter adaptor 30 | SLADP30 | 1-3/16" (30mm) or less |
| Cutter adaptor 38 | SLADP38 | 1-7/32" to 2-9/16" (31mm to 65mm) |
| Cutter adaptor 130 | SLADP130 | 2-19/32" to 5-1/8" (66mm to 130mm) |
