Diamond/carbide core bits or hole saws (automatic-lock type shank) for electric drills | Poly-clic Series | MIYANAGA Co., LTD.

  •
  • Highlights
  • Size table
  •

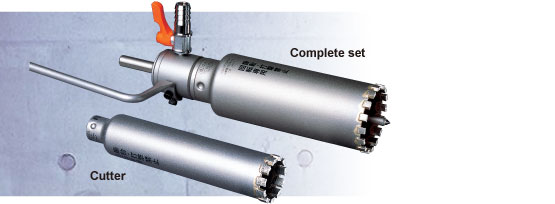

Wetmond Core Bit

Ideal for drilling in difficult-to-machine materials, such as reinforced concrete and Hume pipes.

Wetmond Core Bit

CHARACTERISTICS
  • Cutters can be changed with a single action without any tools.
  • Excellent cutting performance has realized cutting of reinforcing bars even in the rotary-only mode.
  • The internal water supply system provides more efficient cooling of the cutting teeth and removal of dust.
APPLICATIONS
  • Piping work for air conditioners, water-, gas-, and electrical systems, etc.
  • Reinforced concrete, prestressed concrete, asphalt, etc.
  • Ceramic tiles, marbles, stone, Hume pipes, and ceramic pipes.

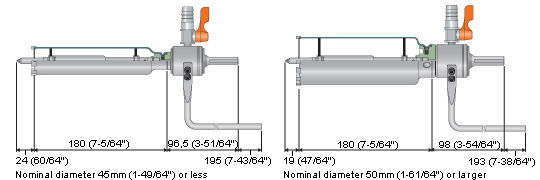

SPECIFICATIONS
Wetmond Core Bit Cutter size: o1" to 8-21/32" (o25mm to 220mm)
Wetmond Core Bit Max. drilling depth: : Standard size: 5-7/8" (150mm) (Cutter length: 7" (180mm))
Long size: 8-21/32" (220mm) (Cutter length: 9-27/32" (250mm))
Wetmond Core Bit Shank size: S shanks: 3/8" (10mm)
(Cutters of o1" to 1-3/4" (o25mm to 45mm))
  L shanks: 33/64" (13mm)
(Cutters of o2" to 8-21/32" (o50mm to 220mm))
Wetmond Core Bit Applicable electric drill: Double insulated electric drills (in the rotary-only mode)

Wetmond Core Bit

Precautions for use
  • Always supply water when making a hole.
  • When water is used, make sure to take measures to prevent electric shock. We recommend wearing rubber gloves.
  • Size Table
