Poly-clic Series
S shanks (o49mm or less)
| Item | Part No. | Cutter size | Specification |
| S shank | PCSKS | o1-59/64" (49mm) or less |
Straight shank 3/8" (10mm) |
| S shank SDS | PCSKSR | SDS shank (For light-weight hammer drill) |
|
| S shank 200L | PCSKS200 | Straight long shank 3/8" (10mm) |
|
| S shank SDS 200L | PCSKSR200 | SDS long shank |
| * Note 1: | S shanks 200L and SDS 200L (both are long shanks) are usable only with cutters with cutter sizes of o 1-1/8" (29mm) or larger. (This is because the outside diameter of the S shank stopper is o 1-1/16" (27mm). If the cutter size is less than o 1-1/8" (29mm), the stopper is caught in the drilled hole, thus disabling deep-hole drilling.) |
| * | Click here. How to use the long shanks. |
L shanks (o50 to 210mm)
| Item | Part No. | Cutter size | Specification |
| L shank | PCSKL | o 2" (50mm) or larger |
Straight shank 33/64" (13mm) |
| L shank SDS | PCSKLR | SDS shank (For light-weight hammer drill) |
|
| L shank (3/8" (10mm)) | PCSKLT | o2" to 3-1/8" (o50mm to 80mm) | Straight shank 3/8" (10mm) |
| L shank 200L | PCSKL200 | o 2" (50mm) or larger |
Straight long shank 33/64" (13mm) |
| L shank SDS 200L | PCSKLR200 | SDS long shank | |
| L shank 200L (3/8" (10mm)) | PCSKLT200 | o2" to 3-1/8" (o50mm to 80mm) | Straight long shank 3/8" (10mm) |
| * LShank with 7/16" Hex | PCSKL716HEX | o2" (50mm) and larger | 7/16" Hex shank |
X shanks (o50mm and abobe)
| Item | Part No. | Cutter size | Specification |

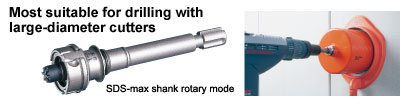

| * SDS-Max Shank Rotary Mode | PCSKXMXK | o 2" (50mm) and abobe (Cutters with a diameter of at least 4-3/4" (120mm) are recommended.) |
SDS-max shank |
| * SDS-plus shank | PCSKXR | o 2" ( 50mm) and abobe | SDS-plus shank |
| * | New ! |
| * | Click here. How to use the long shanks. |
Expanding Shank
*US Non-Stock Item
| Item | Part No. | Applications | Specification |
| * Expanding shank S | PCSKSEXP250 | Existing hole o1-59/64" (49mm) or less |
Used with Poly-clic shanks |
| * Expanding shank L | PCSKLEXP250 | Existing hole o 2" (50mm) or larger |
Used with Poly-clic shanks |
| * | New ! |
Center pin type shanks for Deep-Bore holesaw
*US Non-Stock Item
| Item | Part No. | Cutter size | Accessory |
| Center pin type S shank for Deep-Bore holesaw |
PCSKSCP | o1-59/64" (49mm) or less |
Center pin type drill cap |
| Center pin type L shank for Deep-Bore holesaw |
PCSKLCP | o 2" (50mm) or larger |
Center pin type drill cap |
Drill cap (Center pin type shanks for Deep-Bore holesaw)
| Item | Part No. |
| Drill cap | PCSKDC |
Dust prevention caps and Dust stopper
| Item | Part No. | Applications |
| Dust prevention cap S | PCBCS | For S shank |
| Dust prevention cap L | PCBCL | For L shank |
| Dust stopper | PCDS | Common to S, L shanks |
| * | The Poly-click shanks are provided with a dust prevention cap to prevent dust from entering the hole into which the center pin or center drills is fitted. The center pin or center drill can be attached or detached with the dust prevention cap remaining mounted. Package products of all product types of the Poly-clic Series, and single cutters and shanks of three product types, i.e. Poly-clic Drimond Core Bit, Drimond Core Bit for Block, and Hyperdia Core Bit, are supplied with the dust stopper. |
| * Note 1: | The S shank should use the dust prevention cap for S shank, and the L shank should use the dust prevention cap for L shank. |
Table 1
(Cutters of the sizes given below should be used without the dust prevention cap.)
| Item | Nominal diameter |
| Poly-clic Holesaw 378 and 378P, FRP Core Bit | 13/16" (20.9mm) or less |
| Poly-clic Deep-Bore Holesaw | 55/64" (21.9mm) or less |
| Poly-clic Hybrid Core Bit | 7/8" (22.4mm) or less |
| Poly-clic Composite Core Bit | 15/16" (23.9mm) or less |
| Poly-clic Carbide Step Drill | All sizes |
| * Note 2: | S shank-specific cutters of some sizes cannot be mounted with the dust prevention cap. (Table 1) |

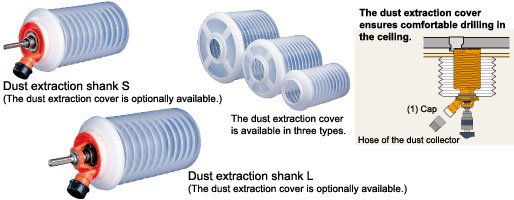

Poly-clic Series Dust Extraction Shanks
*US Non-Stock Item
| Item | Part No. | Cutter size | Specification |
| Dust extraction shank S | PCSKSS | o1-59/64" (49mm) or less |
|
| Dust extraction shank S SDS | PCSKSSR | ||
| Dust extraction shank L | PCSKLS | o 2" (50mm) or larger |
|
| Dust extraction shank L SDS | PCSKLSR | ||
| Plastic hood 100 | PCSJC100 | Up to o3-1/8" (80mm) | Hood inner diameter 3-7/8" (100mm) |
| Plastic hood 170 | PCSJC170 | Up to o5-7/8" (150mm) | Hood inner diameter 6-11/16" (170mm) |
| Plastic hood 240 | PCSJC240 | Up to o 8-21/32" (220mm) | Hood inner diameter 9-29/64" (240mm) |
| * | The S shanks is so designed that the shank and the dust extraction part form one piece. |
Optional parts
*US Non-Stock Item
| Item | Part No. | Cutter size | Specification |
| Dust extraction holder L | PCSHL | o 2" (50mm) or larger |
L shanks |
| Dust collecting hose adapter | PCSJHADP | Common to S, L shanks |
| * | The dust collecting hose adapter comes standard with the dust extraction shank. |

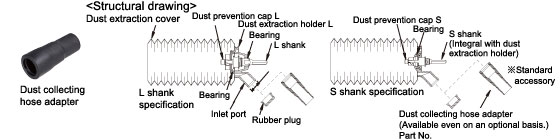

Precautions in using the dust extraction shanks
- When the dust collector is not in use, lock the dust extraction holder or take other actions to prevent the holder from turning freely.
(Caution)
If the dust extraction holder turns freely, the rubber plug in the inlet port may come off. - The dust extraction cover is made a little longer than required. Cut the cover to the length of cutters to be used, at its concave part by the use of a cutter knife or other means.
- The dust extraction cover can be detached. If the cover is soiled, which makes it difficult to do your work, detach and clean it. When the dust extraction cover hinders you from changing the cutter, center drill, or center pin, detach the cover.
- The inlet port is fitted with a rubber plug before shipment. Detach the plug before using the cleaner.
- The inlet ports of the dust extraction holder and dust extraction shank have an outside diameter of 1-3/32" (28mm).
* If the size of the inlet port does not match that of the cleaner’s port, attach the supplied “dust collecting hose adapter” to the inlet port.
