Deltagon Bits

■ Solid Carbide Head.
■ Special jointing Method
■ Three and Five Edges.

Three Edge
Safer Drilling Against Re-Bar

Multi cutting edge reduces sticking when hitting re-bar.

Penetrates Through Deck-Plate

Drills through steel plate (1/16" thick) and concrete.

Drilling through deck plate

Drills Near-Perfect Round Holes

The absence of a chisel-point cutting edge eliminates rifling and prevents the occurrence of Oval shape hole.

Drilling a hole to a perfect roundness

Smooth and Easy Centering

The center point one-piece carbide head helps to achieve smooth and easy centering.

More accurate hole starting without bit walk

Longer Life

The wear on the outside diameter is much less compared to standard bits.

Most drill bits have a chisel edge which causes rifling. During this rifling process, both ends of the chisel edge become the momentary axis of the drill bit. This produces a hole with a triangular or pentagonal shape. Our Deltagon solid carbide head, the ideal shape for a drill bit tip, produces near-perfect round holes.

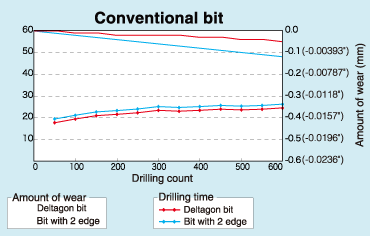

Minimum wear of the outside cylindrical surface

* This test results are only an example and may differ depending on work materials and an electric drill you use.
Test data: Bit size 3/4" (19.0mm) (Hex Shank Bit)
Work materials: Concrete with a compressive strength of 300 kgf/cm2
Drilling length: 3-7/8" (100mm)
