Hyperdia Disc (Curved surface type / For rough finishing)
Hard to clog. Original curved shape increases cutting ability.
CHARACTERISTICS
- Remarkable durability and speed by the unique diamond layout and by mounting method, and by the use of large diamond grains.
- Unique curved surface makes work simpler and easier.
- Large diamond grains increase durability and speed.
- Designed for safety, with diamonds covering the entire surface.
- Possible to grind even complicated shapes.
- Lightweight design.
APPLICATIONS

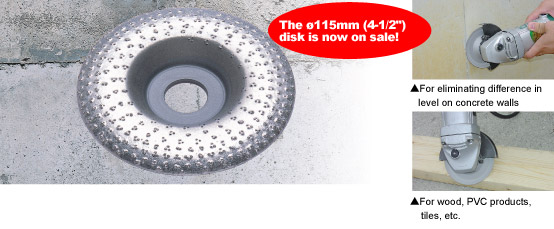

- For chamfering concrete, stone, etc., surfacing, cutting bumps, and eliminating difference in surface level.
- For removing elastic films, cutting PVC pipes and wood, etc.

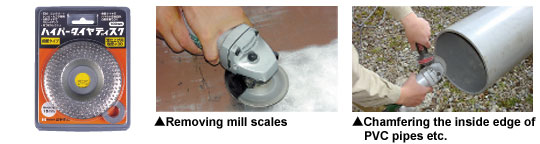

- For removing mill scales on metal or weld beads.
SPECIFICATIONS
 |
Outer diameter: | 4-1/2" (115mm) |
|
Grain size: | #30 |
|
Applicable electric drill: | Electric disc grinders that support discs with a diameter of 4-1/2" or 5". |
Size table
| Outer diameter | Part No. | Diameter of attachment hole H | Grain size | |
| inch | mm | |||
| 4-1/2" | 115mm | HPD115C03E | 7/8" | #30 |
Precautions for use
- Do not push the Hyperdia disc with an excessively strong force. Otherwise, it may result in damage or bend.
- The diameter of attachment hole is 7/8". Refer to the manual of an electric drill before attaching this tool.
