Diamond/carbide core bits or hole saws (automatic-lock type shank) for electric drills | Poly-clic Series | MIYANAGA Co., LTD.

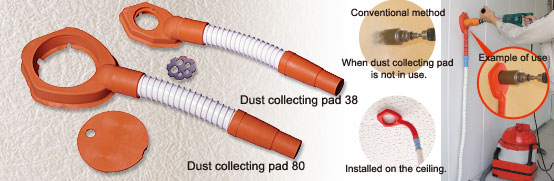

Dust Collecting Pad

Prevention of dust scattering!
Usable with other manufacturers' products!
Easy centering!

Dust Collecting Pad

CHARACTERISTICS
  • Combined structure of flexible dust collecting hose and pad, and excellent adsorption makes it possible to be attached to the wall and ceiling.
  • Easy centering with scale.
  • Usable both for dry and wet type. (Vacuum Cleaner must be wet type / Dust Extractor)
  • Can be used with any size of core bits and drill bits.
  • Also used with the Mistdia Drill Bit and Wetmond Core Bit.
  • The Plate for dust collecting pad S can be used as a positioning guide as well.
APPLICATIONS
  • Prevention of dust scattering in drilling work for installation of air conditioners, extractor fans, piping, anchors, etc.
  • Usable for a variety of drill bit such as core bits, drill bits, diamond core drills, Mistdia Drill Bit, IT Drill Bits, etc. Usable for core bits and drill bits supplied by other manufacturers.

Size table
Item Part No. Components Drill diameter
Dust collecting pad 38 SJP038 Dust collecting pad 38
(with plate for dust collecting pad 38)
1-1/2" (38mm) or less
Dust collecting pad 80 SJP080 Dust collecting pad 80
(with plate for dust collecting pad 80)
3-1/8" (80mm)
or less
Dust collecting pad V SJPV Dust collecting pad V
(with plate for dust collecting pad V)
6-1/2" (165mm) or less
Dust collecting pad L SJPL Dust collecting pad L
(with plate for dust collecting pad L)
8-21/32"
(220mm) or less

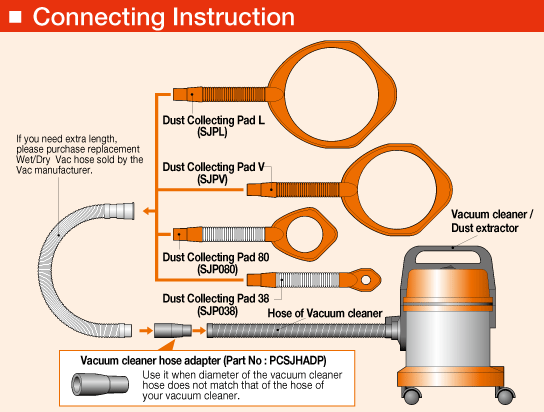

Optional parts
Item Part No. Components Drill diameter
Plate for dust collecting pad 38 SJP038P Two metal plates
(with a positioning hole)
1-1/2" (38mm) or less
Plate for dust collecting pad 80 SJP080P Rubber plate 3-1/8" (80mm)
or less
Plate for dust collecting pad V SJPVA Rubber plate 6-1/2" (165mm) or less
Plate for dust collecting pad L SJPLA Rubber plate 8-21/32"
(220mm)
or less
Dust collecting hose SJPH 118" (3m)
(with dust collecting hose adaptor)
-
Dust collecting hose adaptor PCSJHADP Supports hoses with a hole
diameter of 1-3/16" to 1-1/2" (30mm to 38mm)
-
Precautions for use
  • This pad may not be attached to the ceiling depending on the height of the ceiling, suction force of the dust collector, or condition of the ceiling surface.
  • Dust may stick to the Dust collecting pad and cannot be removed if the pad is used for drilling in Japanese-style plastered walls, or walls covered with textile wallpaper of a deep color or of uneven surface.
