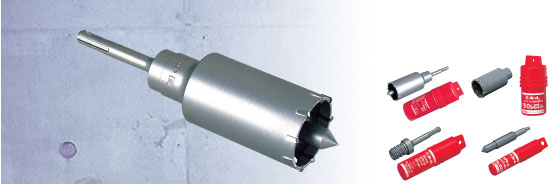

Rotary Hammer Core Bit 600W (Thin Wall Core Bit)
The light-weight hammer drill bit can drill a large-diameter hole with ease.
CHARACTERISTICS
- Light-weight hammer drills can efficiently transmit their power to the cutting teeth, thus drilling large-diameter holes quickly.
- Thanks to SDS shank, it can be used with various light-weight hammer drills.
- The center pin realizes accurate hole starting without bit walk.
APPLICATIONS
- Concrete, block, brick, etc.
SPECIFICATIONS
 |
Cutter size: | o1" to 3-7/8" (o25mm to 100mm) |
|
Cutter length: | 4-1/8" (105mm) (Max. drilling depth: 2-3/4" (70mm)) |
|
Applicable electric drill: | Light weight hammer drills (up to 600W) |
Size table
| The actual sizes are in metric, imperial sizes are approximate. |
| Cutter size D | Complete sets | Cutters | |
| inch | mm | Part No. | Part No. |
| 1" | 25mm | 600W25 | 600W25C |
| 1-1/8" | 29mm | 600W29 | 600W29C |
| 1-1/4" | 32mm | 600W32 | 600W32C |
| 1-3/8" | 35mm | 600W35 | 600W35C |
| 1-1/2" | 38mm | 600W38 | 600W38C |
| 1-3/4" | 45mm | 600W45 | 600W45C |
| 2" | 50mm | 600W50 | 600W50C |
| 2-9/16" | 65mm | 600W65 | 600W65C |
| 3-1/8" | 80mm | 600W80 | 600W80C |
| 3-1/2" | 90mm | 600W90 | 600W90C |
| 3-7/8" | 100mm | 600W100 | 600W100C |
Shanks (SDS-plus)
| Item | Overall length L | Part No. |
| No. 601 (Cutters of o1" to 1-1/2" (o25mm to 38mm)) |
7-7/8" (200mm) | 600WSK1200 |
| 11-13/16" (300mm) | 600WSK1300 | |
| No. 602 (Cutters of o1-3/4" to 3-7/8" (o45mm to 100mm)) |
7-7/8" (200mm) | 600WSK2200 |
| 11-13/16" (300mm) | 600WSK2300 |
Center pins
| Item | Part No. |
| No. 600 (Cutters of o1" (25mm ), 1-1/8" (29mm)) |
600WCP0 |
| No. 601 (Cutters of o1-1/4" to 1-1/2" (o32mm to 38mm)) |
600WCP1 |
| No. 602 (Cutters of o1-3/4" to 3-7/8" (o45mm to 100mm)) |
600WCP2 |
Maximum drilling capacity (Guideline)
| Shank to be used | Complete sets Overall length L |
Maximum drilling capacity |
| No. 1 x 200 | 11-7/32" (285mm ) | 8-55/64" (225mm ) |
| No. 1 x 300 | 15-1/8" (385mm ) | 12-51/64" (325mm ) |
| No. 2 x 200 | 10-53/64" (275mm ) | 8-15/32" (215mm ) |
| No. 2 x 300 | 14-3/4" (375mm ) | 12-13/32" (315mm ) |
